Why Choose Wall-Mounted Energy Storage Batteries
In recent years, surging electricity costs, unstable municipal power supply and the booming of off-grid lifestyles have pushed residential energy storage into a fast-developing era. More homeowners, solar installers and RV lovers are looking for practical, space-efficient and long-lasting power storage solutions. Traditional floor-standing battery cabinets and bulky lead-acid battery packs have obvious drawbacks: they occupy a large amount of indoor floor space, lead to messy wiring, and require regular complicated maintenance, which can no longer meet modern usage demands.

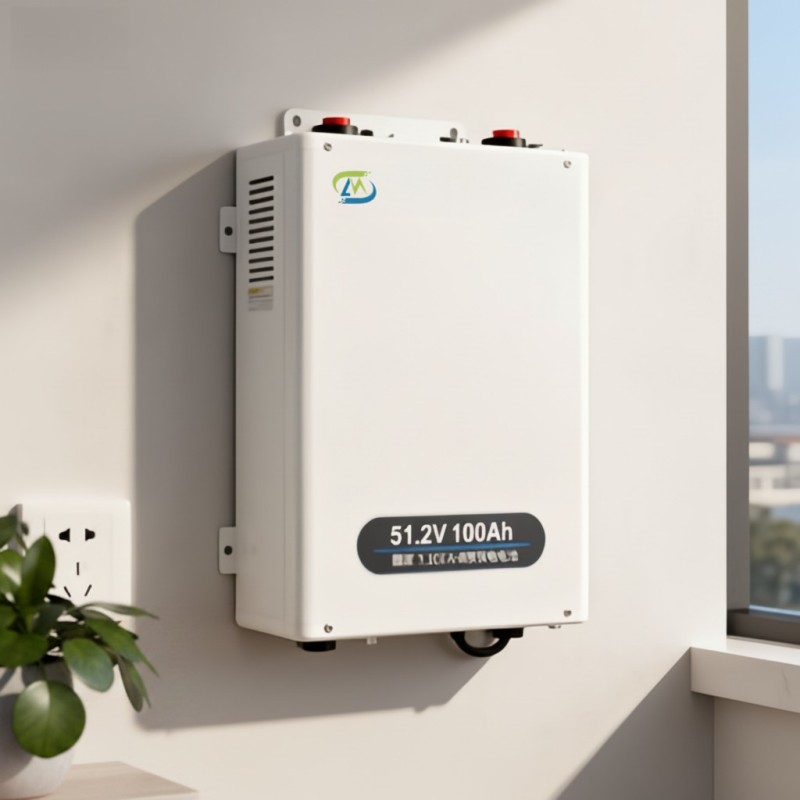

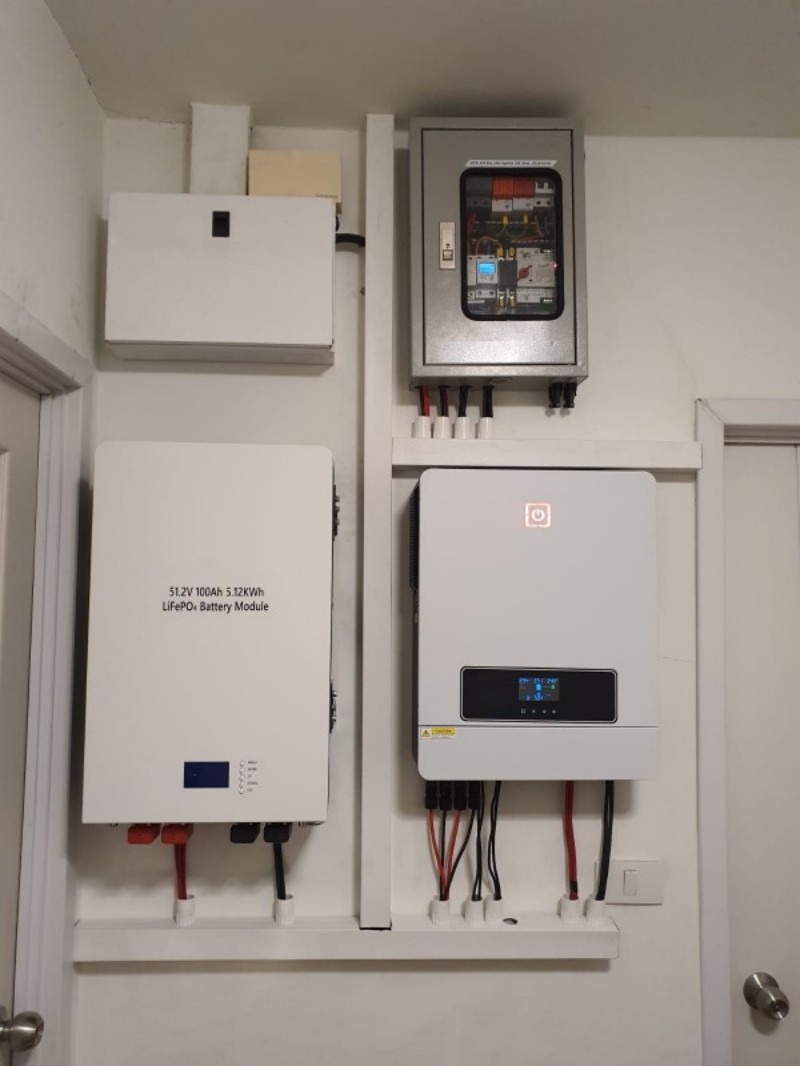

Wall-mounted lithium iron phosphate batteries have gradually become the mainstream choice in the market thanks to their compact structure and easy installation. Our 5.12kWh Wall Mounted LiFePO4 Storage Battery is developed precisely for home backup, solar energy storage and RV interior power supply. Featuring an ultra-slim wall-hung body, this unit makes full use of vertical wall space and keeps the installation area tidy and orderly. With a nominal voltage of 51.2V and a rated capacity of 100Ah, it delivers a total usable energy of 5.12kWh. Whether you need emergency power for your house, energy storage for solar systems or mobile power for outdoor camping, this all-in-one battery can provide steady and dependable power output all year round.
Excellent Performance & Reliable Safety Protection
When purchasing energy storage batteries, performance stability and safety performance are always the primary concerns for every user. As a mature and reliable 51.2V Wall Battery For Home Backup Power, this product adopts high-quality LFP cells as the core component. The internal resistance is controlled below 100mΩ, which ensures efficient energy conversion and low power loss during charging and discharging. What’s more, its monthly self-discharge rate is no more than 3.5% at 25℃, meaning the battery can retain most of its power during long-term standby, and you do not need to recharge it frequently even if it is left unused for weeks.

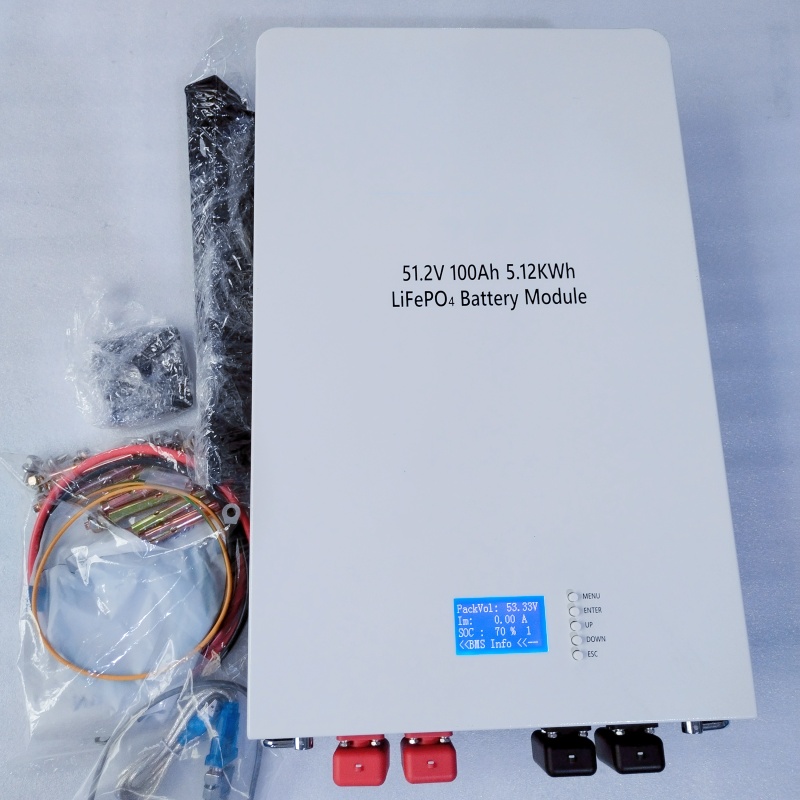

The built-in intelligent BMS system acts as an all-round guard for the battery. It offers comprehensive protection against overcharge, over-discharge, over-current, short circuit and excessive temperature. The BMS protection current reaches 120A for 1 second, which can quickly cut off the circuit once abnormal current occurs, effectively avoiding potential safety risks. This battery works normally in a wide temperature range from -20℃ to 75℃, and the storage temperature also covers the same range, so it can adapt to cold winter and hot summer environments without performance attenuation.
In terms of service life, the battery can achieve more than 5000 complete charge and discharge cycles under the condition of 80% DOD at 25℃ and 0.5C rate, and still maintain 60% of the initial capacity when reaching the end of life. Compared with traditional lead-acid batteries, its service life is several times longer, which greatly reduces the frequency of product replacement and long-term operating costs. With IP20 indoor protection grade, it can prevent accidental touch and dust intrusion. Meanwhile, it has passed a full set of authoritative certifications including CE, ROHS, UN38.3, MSDS and IEC62133, fully complying with international safety and transportation standards, so users can rest assured to use it indoors for a long time.
Strong Compatibility for Solar Energy Storage Systems

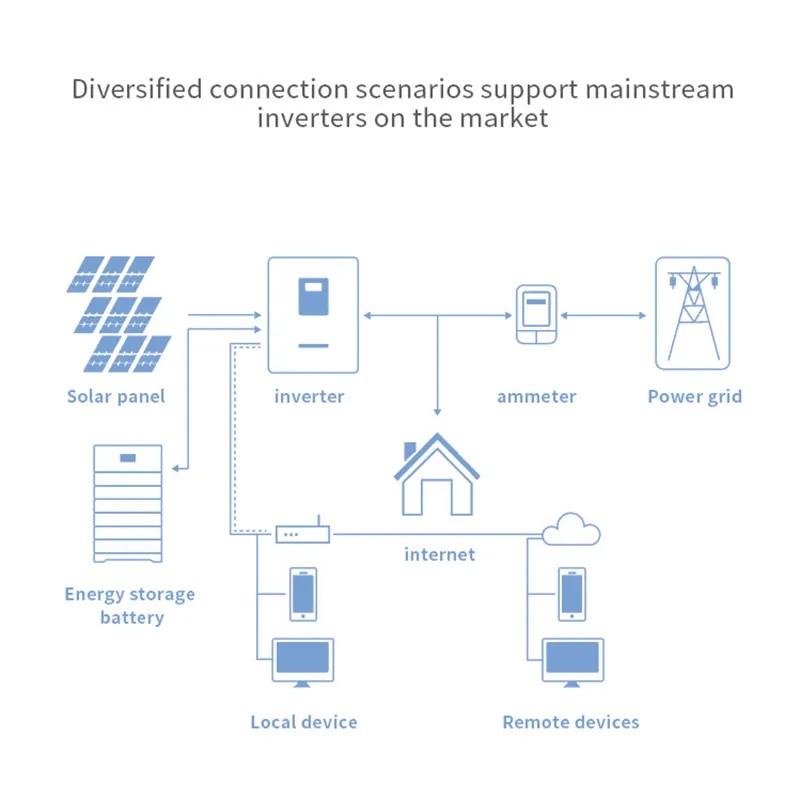

For families and users who have built photovoltaic power generation systems, a well-matched storage battery is the key to maximizing the value of solar energy, and this Solar Energy Storage Wall Mount Battery Pack is undoubtedly an ideal partner for household solar setups. The battery adopts standard CC/CV constant current and constant voltage charging mode, with a standard charging voltage of 57.6V and a discharge cut-off voltage of 44V. The overall working voltage range is 44V to 57.6V, which perfectly matches the operating parameters of most mainstream solar inverters and chargers on the market.

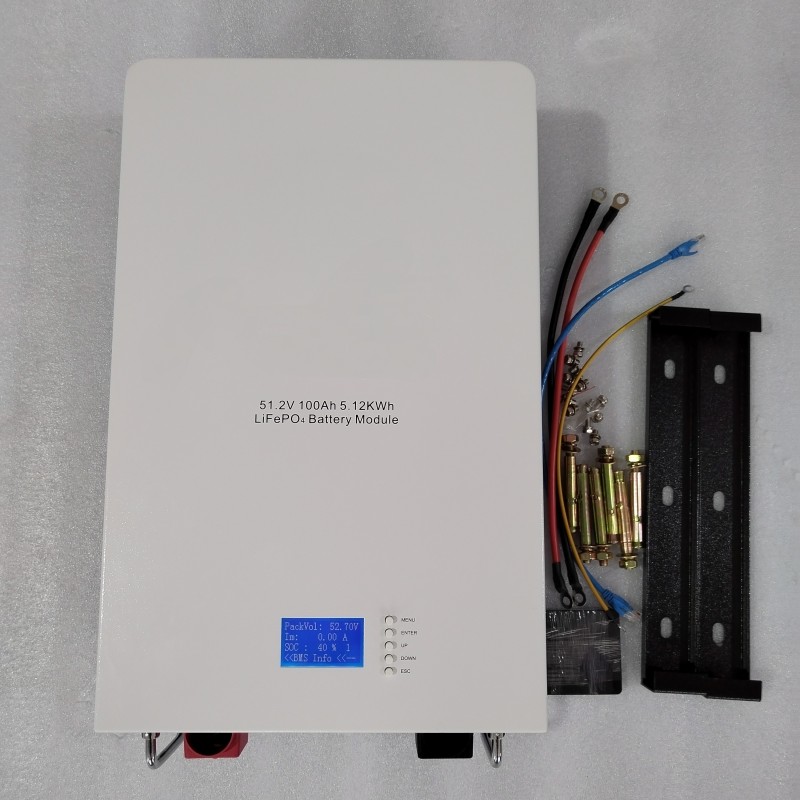

It is equipped with three mainstream communication interfaces: CAN, RS485 and RS232. These multi-protocol ports support real-time data interaction with solar equipment. Users can view the real-time SOC status and running data of the battery through supporting display devices and LED indicators, realizing intelligent monitoring and automatic linkage of the entire solar storage system. The M8 copper wiring terminals are adopted for the connection part, which has excellent electrical conductivity, firm connection and strong anti-loosening ability, and can maintain stable current transmission for a long time.
In addition to basic single-unit use, this battery also supports flexible capacity expansion. Users can connect up to 15 units in parallel according to their actual power consumption. This design brings great flexibility: you can start with a single 5.12kWh unit for basic daily use, and add more batteries later when you upgrade your solar system or increase power demand. Whether it is a small household on-grid solar system or a large off-grid solar power station, this expandable battery pack can be combined freely to create a customized energy storage solution.
Wide Application in Home & RV Scenarios
Designed for diversified usage needs, this wall-mounted battery covers three core application scenarios, bringing convenient power supply experience to different groups of users.
First of all, it serves as reliable home emergency backup power. In many areas, sudden power outages caused by grid maintenance, extreme weather or circuit faults will seriously disrupt daily life. Once the municipal power is cut off, this battery can automatically switch to power supply mode, continuously providing electricity for household lighting, refrigerators, water pumps, communication equipment and other essential appliances. It effectively solves the trouble of power failure and ensures the normal operation of family life. At the same time, users can also use the stored power during peak electricity price periods to reduce daily electricity expenses.
Secondly, it cooperates perfectly with indoor solar energy storage systems. The solar panels collect solar energy during the day, and the battery stores the excess electricity. When night comes or the sun is insufficient, the stored green power will be released for household use. This mode of self-generation and self-use not only makes full use of clean solar energy, but also greatly cuts down long-term electricity bills, which is an eco-friendly and cost-saving choice for modern families.

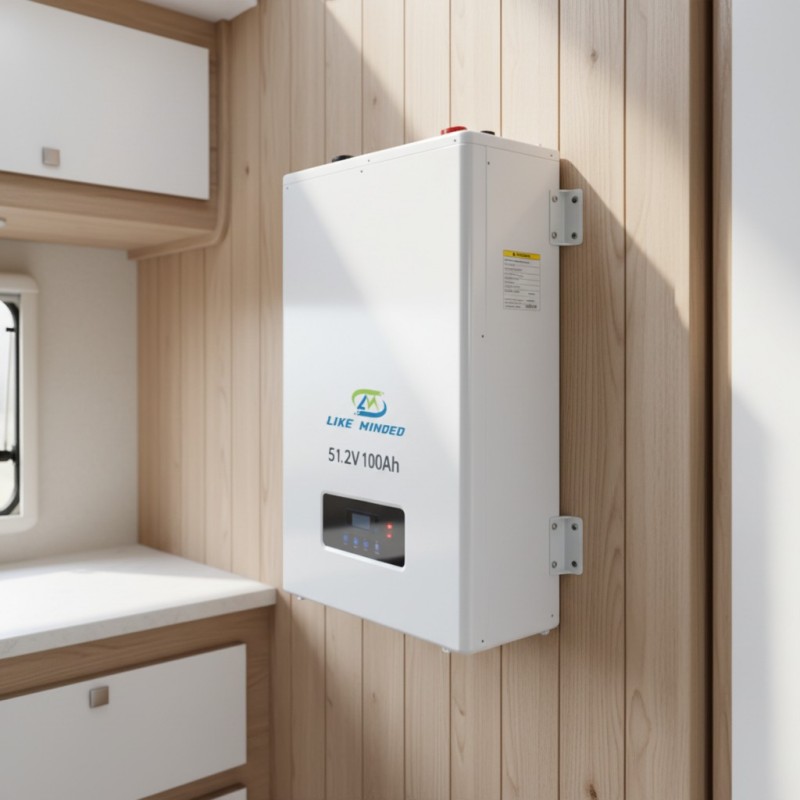

Thirdly, it is specially optimized for RV and camper interior power supply. Outdoor camping and self-driving travel have become popular leisure ways, and stable interior power is the guarantee of comfortable travel. The slim wall-mounted structure can be firmly installed on the inner wall of RVs and caravans, without occupying limited activity space inside the vehicle. The sturdy structure can resist slight vibration during driving, and keep stable power output all the way. It can supply power for RV lights, kitchen appliances, entertainment equipment and other daily electrical devices, allowing you to enjoy convenient living conditions even in off-grid outdoor environments.
Professional Service & Complete After-Sales Guarantee

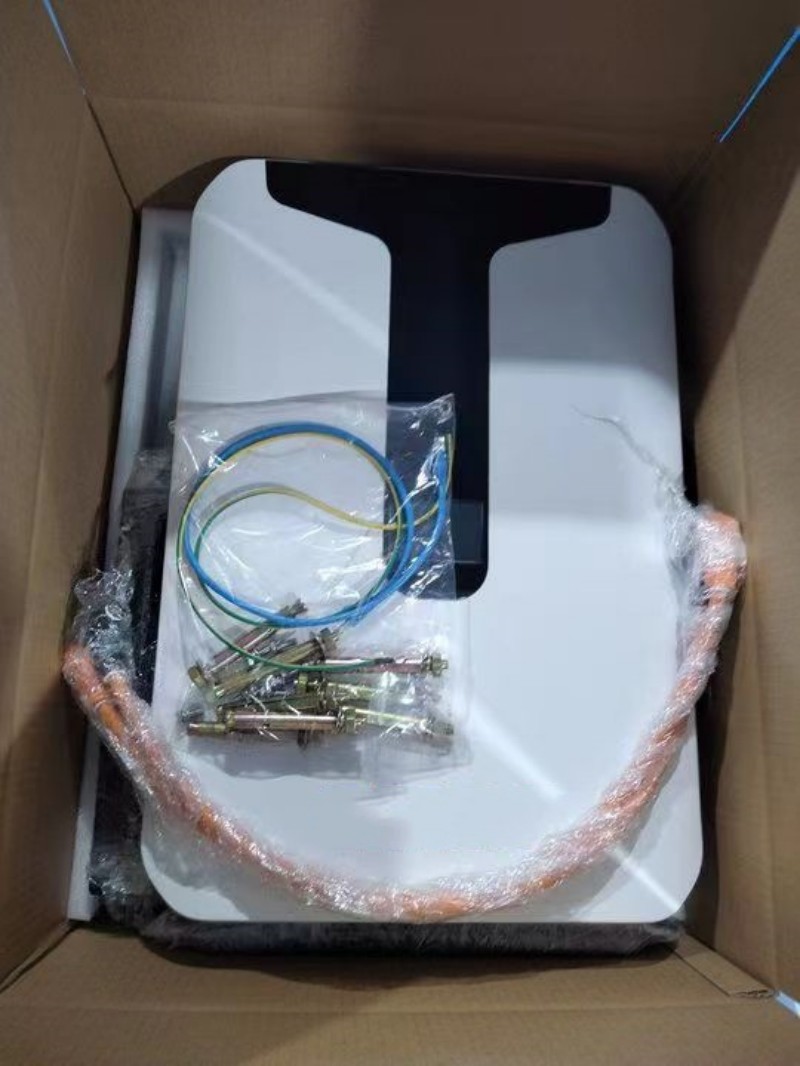

We always take user experience as the core and provide one-stop supporting services for every set of products. Each battery is delivered together with complete standard export packaging, dedicated mounting brackets and connecting wires. We also attach detailed paper installation guides with step-by-step operation tutorials, so even users without professional technical knowledge can complete wall installation and wiring quickly by themselves.
Our professional technical team provides targeted matching guidance for solar energy systems and RV circuit transformation. Before delivery, every product will go through strict multi-process quality inspection to eliminate defective products and ensure that each battery leaves the factory with stable performance. In terms of after-sales service, we offer a 3-year official global warranty, as well as long-term reliable technical support. No matter you are an individual end user, solar installer or RV equipment supplier, you can get timely and professional assistance when encountering any problems during use.
From space-saving design, superior performance and comprehensive safety protection to strong compatibility and thoughtful services, this 51.2V 100Ah wall-mounted LiFePO4 battery is a cost-effective and multi-functional energy storage product. It is definitely a worthy investment for home backup, solar storage and RV mobile power needs.
FAQ
Q1: What is this 51.2V 100Ah wall-mounted battery mainly used for?
A: This 5.12kWh Wall Mounted LiFePO4 Storage Battery is designed for three core scenarios: household emergency backup power, indoor solar energy storage systems, and interior power supply for RVs and campers. It delivers stable power for daily appliances in homes, solar setups and mobile caravans.
Q2: Can this battery work with solar panel systems?
A: Absolutely. As a professional Solar Energy Storage Wall Mount Battery Pack, it is fully compatible with most mainstream solar inverters and chargers. It adopts standard CC/CV charging mode and supports CAN/RS485/RS232 communication, which realizes intelligent linkage with solar systems to store solar power efficiently.
Q3: Is this battery suitable for RV interior installation?
A: Yes. The slim wall-mounted structure fits perfectly inside RVs and campers. It can steadily power RV daily appliances and support off-grid camping and long-distance outdoor travel.
Q4: What are the voltage and current specifications of this battery?
A: The nominal voltage is 51.2V with 100Ah capacity and 5.12kWh usable energy. The working voltage range is 44V ~ 57.6V. The standard charging current is 30A, the maximum charging current is 50A (peak 100A), and the max continuous discharge current is 100A.
Q5: What is the cycle life and self-discharge rate of the LiFePO4 battery?
A: It has over 5000 charge-discharge cycles at 80% DOD under 25℃ and 0.5C rate, retaining 60% capacity at the end of life. The monthly self-discharge rate is ≤3.5% at 25℃, so it keeps power well during long standby.
